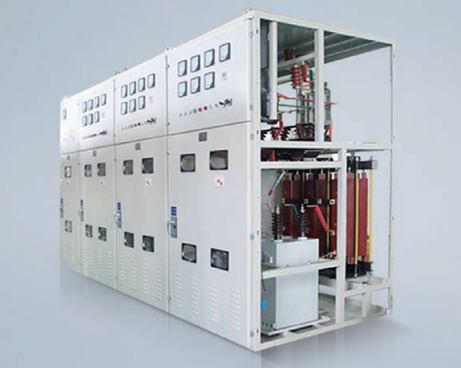

GETBBL High voltage electrical distribution control panel/Capacitor bank with harmonic filter reactor
1)General application
1:TBBL is mainly used for power reception and distribution of 3-6KV-12KV 3 phase AC 50HZ indoor electric system
Specially suitable for working conditions where frequent operations
2:the production is strictly designed according to I standard,also suitable for frequency Shizuku and dirty working conditions.
3:Successfully widely used by Three Georges project, national engineering designing institute, mining company, cement mill, stell mill,
sugar factory,wood industry, chemical industry, city planning, and other place with big power motor and high electric consume place.
.png)
.png)
.png)
2)Structure feature:
1:It is full-closed metal cabinet, meet standard GB3906 AND IEC298,
Full-closed structure can provent foreign matters get into cabinet and cause circuit short-cut; Also provent human body touch to electrified body and moving parts.
2:The cabinet seperate into following main house: breaker house, generatrix house, cable house, sensor parts house, each house were seperated individually
1)breaker house: on bottom of cabinet, with pressure release channel, for gas release if electric arc happened
2)generatrix house: with over 8000N anti-bending epoxy resin support insulator
3)cabinet can operate and maintain in two open side

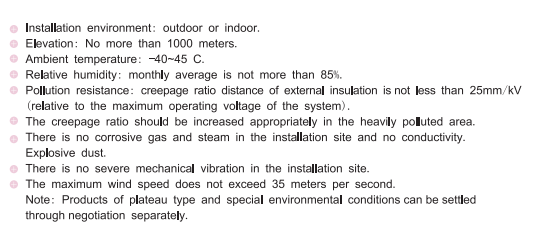

3)Working condition:
relative humidty: daily average value < 95%, monthly average value <90%
No explosion, serious pollution, chemica erosion, excessive vibration
earthquick intensity no over 8 degree
4)Main technical parameter
|
no |
name |
unit |
data |
|
1 |
rated voltage |
kv |
3, 6,10 |
|
2 |
ratd current |
A |
630,1000,1250,1600,2000,2500,3150 |
|
3 |
rated frequency |
HZ |
50 |
|
4 |
rated short circuit drop out current(effective value) |
KA |
20.25; 31.5; 40 |
|
5 |
rated thermo stable current( peak value) |
KA |
20.25; 31.5; 40 |
|
6 |
rated dynamic current( peak value) |
KA |
40; 80; 100 |
|
7 |
rated power frequency withsand voltage(1min) |
KV |
inter-electrode and earth 42; inter -fractures 48 |
|
8 |
ratd thunder impulse withstand voltage |
KV |
inter-electrode and earth 75; inter -fractures 85 |
|
9 |
rated thermo stable time |
KV |
4 |
|
10 |
degree of protection |
|
IP2X |
|
11 |
externam dimension(WXDXH) |
MM |
1100x1200x2650( can design according to demand) |
5)Service:
Install and guide user in free of charge
Whole life service
Professional after-sale service team
